High Resolution Sound Monitoring, Fined Tuned for Roland’s V-Drums

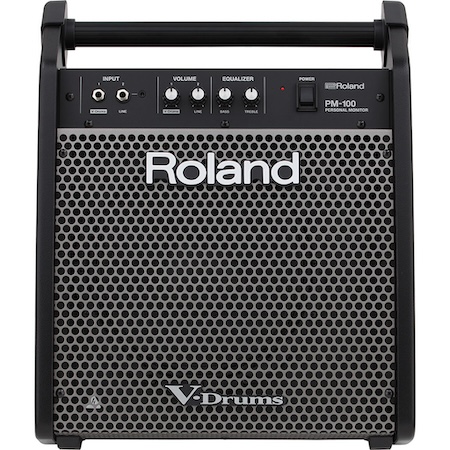

Delivering rich, dynamic sound from a minimal footprint, the PM-100 is the ideal compact monitoring solution for Roland’s V-Drums. Equipped with 80 watts of power, the PM-100 features a custom full-range speaker system and rugged cabinet specially optimized for reproducing the famously expressive V-Drums sound and response. And with onboard mixing capabilities, you’re able to connect music players and other devices for practice and enjoyment while playing at home.
Features
- Premium all-in-one monitor designed for use with V-Drums electronic percussion products
- Full-range audio system with 80 watts of power, custom 10-inch speaker, and tweeter
- Angled design provides ideal sound coverage for the seated player
- Integrated mixer with independent volume controls and global EQ
- Dedicated V-Drums input, plus 1/4-inch and 1/8-inch line inputs for connecting electronic percussion pads, smartphones, and music players
- Unique full-width bar handle for easy floor adjustment and carrying convenience
Specifications
- Rated Power Output;
- 80 W
- Nominal Input Level;
- V-Drums INPUT: -6 dBu (10 k ohms)
- LINE INPUT: -6 dBu (10 k ohms)
- Speakers;
- 25 cm (10 inches) Woofer x 1, 5 cm (2 inches) Tweeter x 1
- Controls;
- POWER switch
- V-Drums VOLUME knob
- LINE INPUT VOLUME knob
- BASS knob
- TREBLE knob
- Indicator;
- POWER
- Connectors;
- V-Drums INPUT jack: Stereo 1/4-inch phone type
- LINE INPUT jack: Stereo 1/4-inch phone type, Stereo miniature phone type
- AC IN jack
- Power Consumption;
- 36 W
- Size;
- 388mm 15-5/16″ (W) x 407mm 16-1/16″ (D) x 354mm 13-15/16″ (H)
- Weight;
- 13.5kg / 29lbs 13 oz
Accessories
- Owner’s Manual
- Power Cord
